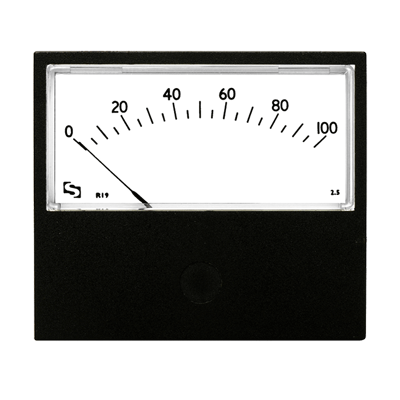

Presentor - Industrial
Back to Analogue Meters

sifam.com

19B

The Presentor Industrial analogue moving coil panel meter is a versatile range of panel-mounted instruments designed for industrial measurement, control panels, equipment monitoring, and general electrical indication applications. The range combines modern styling with high-quality modular construction, making it suitable for both new equipment designs and replacement use.

Available in a selection of sizes and mounting styles, the Presentor Industrial range offers flexible installation options for different panel layouts and enclosure types. It is designed to meet demanding design and cost requirements while maintaining reliable performance across a wide range of electrical measuring applications.

The range includes standard DC and AC measuring options, with additional ranges available using external shunts and transformers. This makes the Presentor Industrial suitable for measuring voltage and current across many common industrial applications. Right-hand zero, centre-zero, and suppressed-zero scale options are also available, allowing the meter to be configured for specialist indication requirements.

Each meter is constructed with a transparent acrylic front and a high-impact translucent rear body moulding, with masks and bezels moulded in black ABS. A taut band centre magnet movement is fitted as standard, using a 26 mm diameter barrel. The design ensures there is no calibration effect when mounted on a ferrous panel, making it suitable for use in metal control panels and industrial equipment housings.

For more demanding environments, a stronger suspension option is available for portable applications. Custom scales, pointer styles, dial markings, company logos, colour printing, and mirror dials can also be specified, allowing the meter to be tailored to individual product or branding requirements.

The Presentor Industrial range is complemented by the Audio Level Presentor and Fast Response Presentor ranges, which offer performance close to full specification VU and PPM meters at affordable prices.

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call +44 (0)1803 615139

Range and Application

  • Analogue moving coil panel meter rang
  • Suitable for industrial electrical indication and monitoring
  • Designed for control panels, equipment panels, consoles, and portable instruments
  • Modern flexible styling
  • High-quality modular construction
  • Suitable for new designs and replacement applications
  • Complements the Audio Level Presentor and Fast Response Presentor ranges

Sizes and Styles

Available in multiple sizes and four mounting styles:

  • Simple back-of-panel mounting
  • Back-of-panel mounting with accompanying bezel
  • Front-of-panel mounting with lower mask
  • Front-of-panel mounting with full bezel

Construction

  • Transparent acrylic front
  • High-impact translucent rear body moulding
  • Black ABS moulded masks and bezels
  • Durable modular construction
  • Suitable for fixed panel applications
  • Stronger suspension option available for portable applications

Movement

  • Taut band centre magnet movement fitted as standard
  • 26 mm diameter movement barrel
  • No calibration effect when mounted on a ferrous panel
  • Reliable moving coil mechanism
  • Stronger suspension available for portable use

Standard Measuring Ranges

DC ranges:

  • 50 mV to 300 V
  • 50 µA to 2 A

AC ranges:

  • 5 V to 300 V
  • 50 µA to 100 mA

Additional options:

  • Other ranges available on request
  • Custom scales available
  • Higher ranges available using external shunts
  • Higher ranges available using external transformers
  • Right-hand zero options
  • Centre-zero options
  • Suppressed-zero options

Accuracy and Standards

SIFAM meters are normally designed and supplied to meet the requirements of current industry standards, including:

  • BS89
  • IEC 51
  • EN 60 051
  • ANSI C39.1

Pointers and Dials

  • Pointer and dial markings generally follow BS3693 requirements
  • Alternative pointer types available
  • Custom dial markings available
  • Company logos can be added
  • Colour printing available
  • Centre-zero scales available
  • Right-hand zero scales available
  • Mirror dials available, except for type 19
  • Scales can be tailored to individual requirements

Zero Adjustment

  • Zero adjuster normally positioned on the front for surface-mounted styles:
    M type
    B type
  • Zero adjuster normally positioned on the rear for behind-panel styles:
    W type
    WF type
  • Alternative zero adjuster positions can be specified

Operating Temperature

  • Operating temperature range: -25°C to +55°C

Illumination Options

Comprehensive illumination options are available:

  • Overhead illumination
    Available for W and WF styles
    Uses 6 mm diameter festoon-style lamp
  • Light box illumination
    Available for all styles for types 29 and 39
    Uses either festoon lamps or T1¾ flanged lamp
  • LED illumination
    Internal LED illumination available
    Suitable for most sizes and types

Terminals and Connections

  • 6 mm tabs supplied as standard
  • Threaded studs available as an option
  • Flying leads available as an option
